Overview:

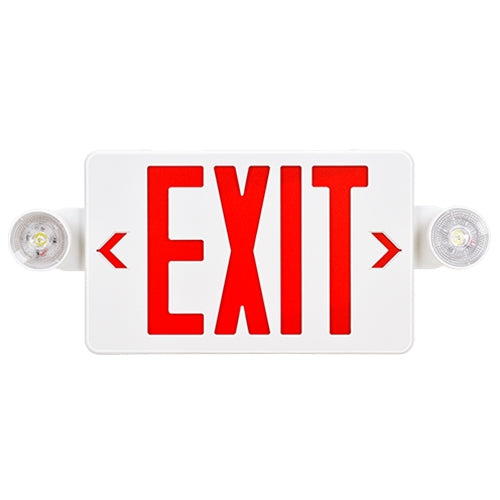

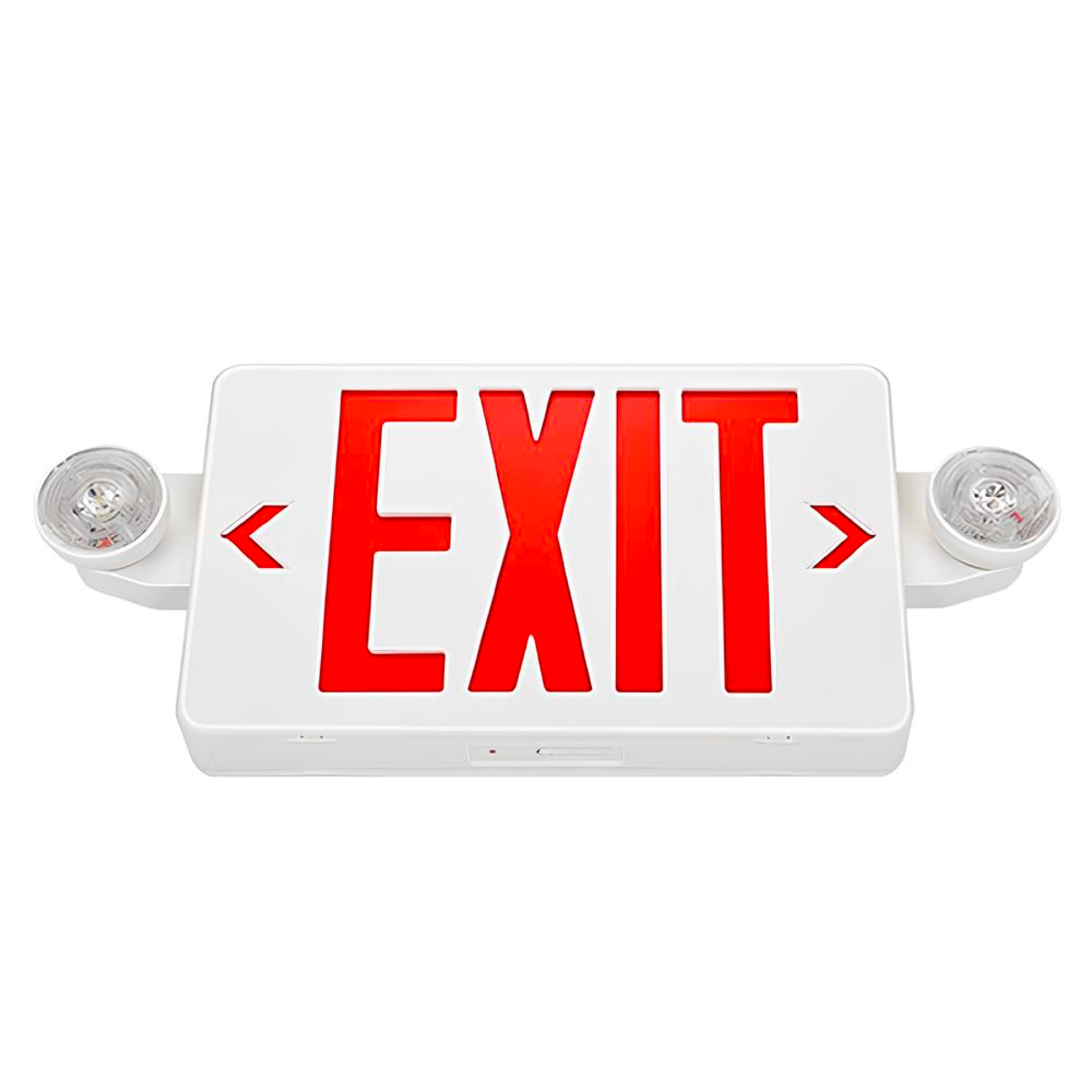

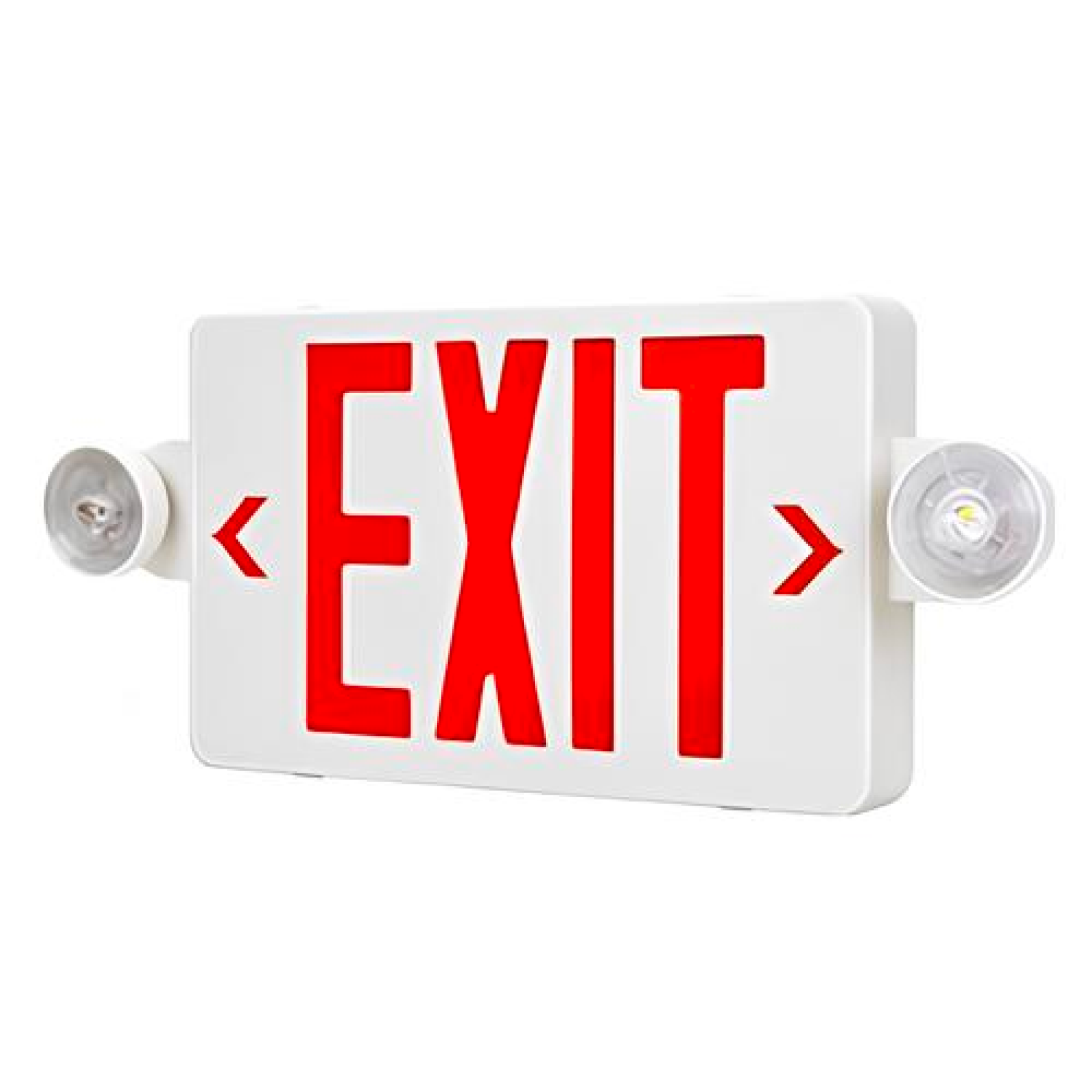

LED Emergency EXIT Sign – 5W – 120-277V – 90-Minute Battery Backup – ETL Certified – 2-Year Warranty
Product Overview:
Ensure safety and code compliance with our LED Emergency EXIT Sign, engineered for reliable performance during power outages and emergencies. Designed for commercial, industrial, and institutional use, this fixture offers efficient illumination, extended battery life, and flexible installation options—making it an essential addition to any emergency lighting system.
Specifications:
-
Input Power: 5W
-
Input Voltage: 120-277V AC, 50/60Hz
-
Input Current: 0.04A
-
Output Wattage (Emergency Mode): 2W
-
Luminous Output: 250 lumens
-
Efficacy: 0.86
-
Battery Type: 3.6V 1000mAh rechargeable battery
-
Emergency Backup Duration: Up to 90 minutes
-
Recharge Time: 24 hours
-
Operating Temperature Range: 5°C to 30°C
-
Certifications: ETL Certified
-
Warranty: 2 Years
Key Features:
-
Bright, Energy-Efficient Illumination:
Delivers clear visibility in emergency conditions with a low 2W power draw in backup mode—ideal for ensuring occupant safety with minimal energy consumption. -
90-Minute Battery Backup:
Built-in NiCd battery provides up to 90 minutes of emergency illumination, meeting industry standards for safe evacuation during power outages. -
Wide Voltage Compatibility:
Operates seamlessly across 120V to 277V, making it suitable for a variety of commercial and industrial electrical systems. -
Durable and Code-Compliant:
Designed to perform reliably in temperatures from 5°C to 30°C, this unit is ETL certified, ensuring it meets safety and performance requirements. -
Simple Installation:

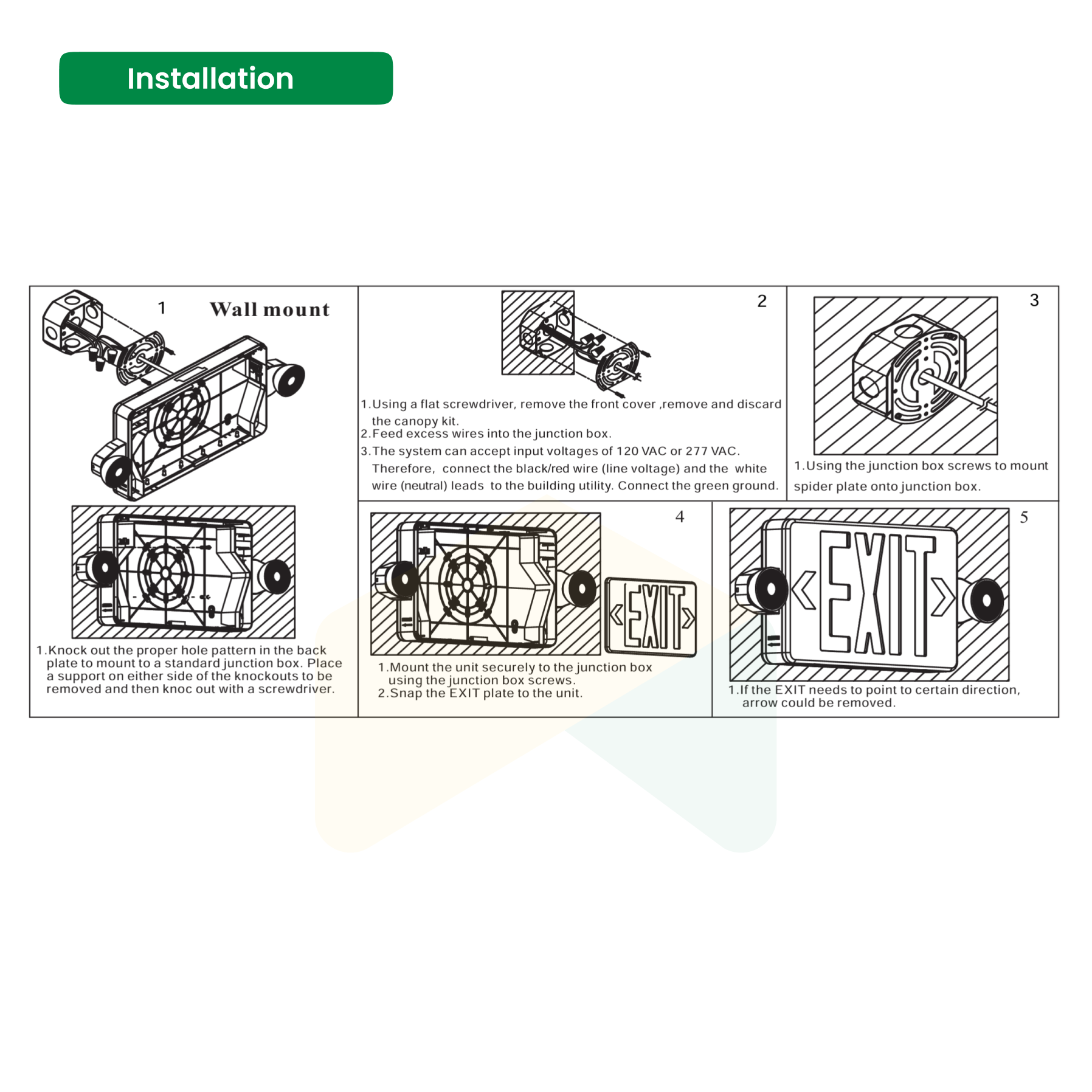

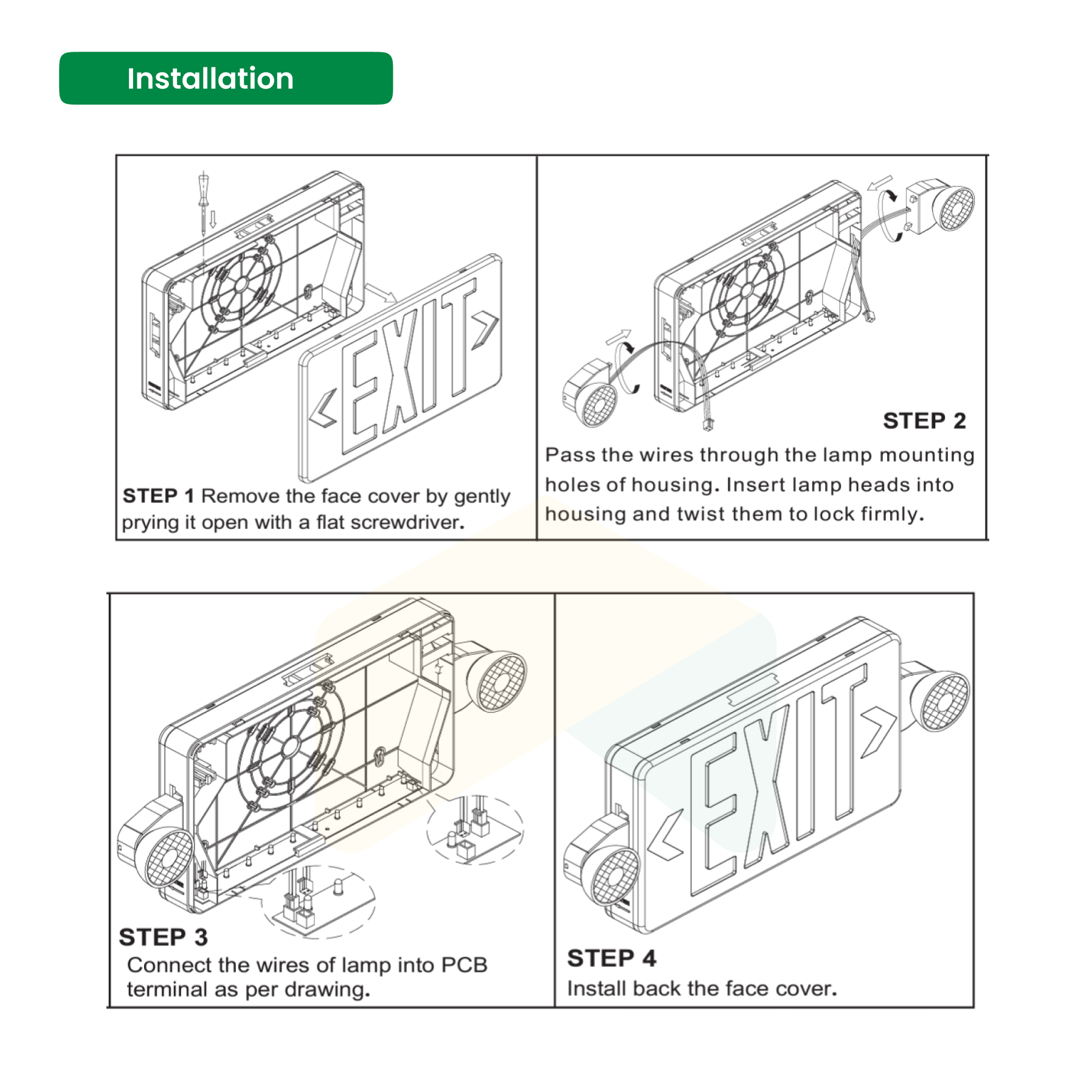

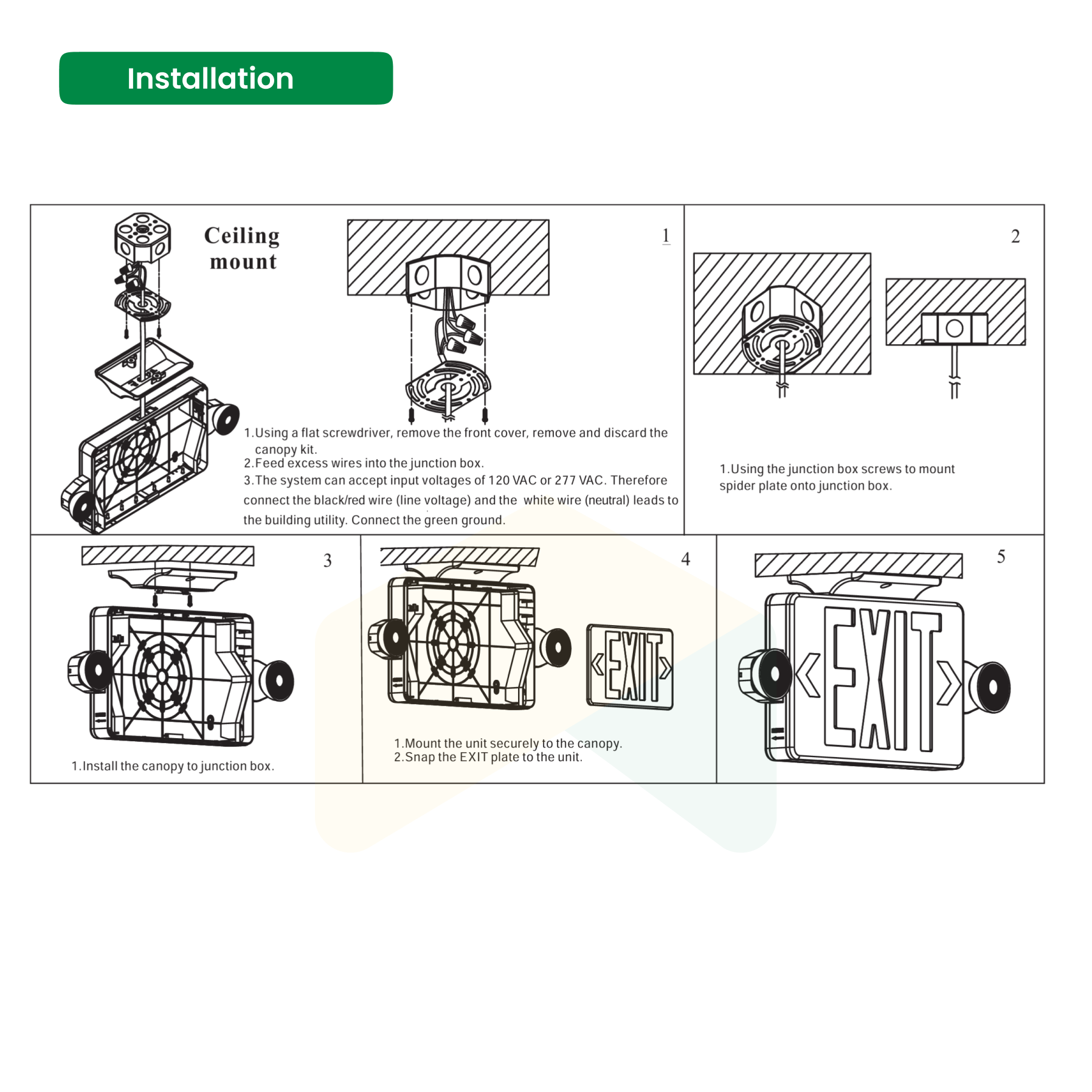

Lightweight and easy to mount, this EXIT sign supports universal installation in wall, ceiling, or end-mount configurations (hardware included).
Technical Details
MPN: | HB1851 |
